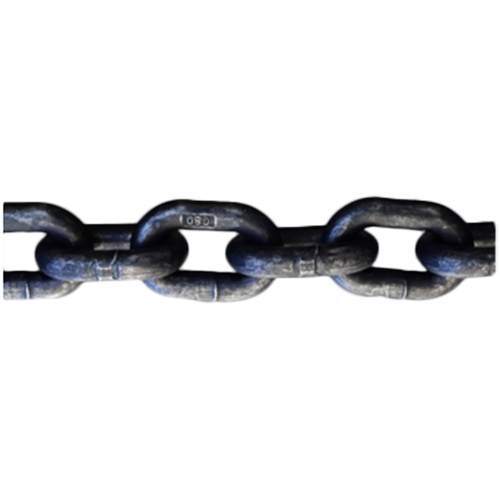

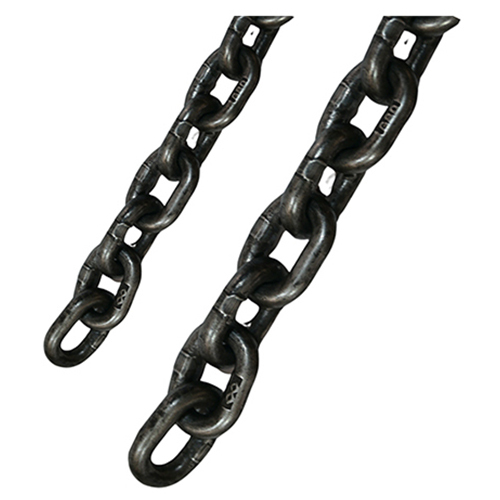

G-80 Alloy Steel Load Chain

G-80 Alloy Steel Load Chain Specification

Material
Alloy Steel

Metal Type
G-80 Grade Alloy Steel

Application
Lifting, Hoisting, Material Handling Equipment

Surface Finish
Black Oxide, Polished

Usage
Overhead Lifting, Slings, Hoists, and Cranes

Color
Blackened or customized

Breaking Strength
At least 8 times the Working Load Limit

Standard
EN 818-2

Working Load Limit
Ranges from 1.12T to 21.2T depending on chain size

Chain Size
6mm to 32mm (available in customized sizes)

Elongation
Minimum 20%

Chain Grade
Grade 80 (G80)

G-80 Alloy Steel Load Chain Trade Information

Minimum Order Quantity
700 Kilograms

Payment Terms
Cash in Advance (CID)

Delivery Time
7 Days

Main Domestic Market
All India

About G-80 Alloy Steel Load Chain

Specifications

Raw Material form only Reputed Brand Steel Mill.
In-house Heat Treatment.
100% Doing Proof Load Testing.
Double Calibration.
Supply Condition with Brand Logo & G-80 Logo.
Size: Wire size die meter from - 6mm to 10mm.
Standard pitch range.
IS: 2062 Grade Steel Metal from Reputed Steel Mfg. Being Used to Make Top/Bottom Cover and Plates.
EDD (Extra Deep Drawing Grade) CR Sheet Metal Used.
Load Chain (G-80) made In-house from High Quality Alloy Steel Made Through VD Rout from Reputed Steel Mfg. Companies.
Pre Heat Treatment & Post Heat Treatment (I. E. Double) Calibration Carried Out to Make Minimal Size Difference Between Chain Links for Enhanced Performance.

Engineered for Heavy-Duty Performance

The G-80 Alloy Steel Load Chain is crafted to meet high standards, boasting a breaking strength that exceeds industry requirements. Its robust construction ensures consistent performance across a range of material handling tasks, making it ideal for overhead lifting and demanding industrial use. Whether you need chains for cranes, hoists, or slings, this product supports safe and efficient operations.

Tailored to Your Specifications

Available in chain sizes from 6mm to 32mm and with the option for customization, the G-80 Alloy Steel Load Chain adapts to your specific project needs. The surface finish can be blackened or polished, and color customization ensures integration with your existing equipment. Its versatility makes it suitable for various lifting and material handling environments.

Certified Safety and Reliability

Manufactured to EN 818-2 standards, the G-80 Load Chain provides a working load limit ranging from 1.12T to 21.2T, with a minimum elongation of 20%. Each chain is rigorously tested to deliver exceptional safety and reliability for critical lifting applications. Trusted by manufacturers and suppliers across India, it upholds stringent quality benchmarks.

FAQ's of G-80 Alloy Steel Load Chain:

Q: How is the G-80 Alloy Steel Load Chain used in lifting applications?

A: The G-80 Alloy Steel Load Chain is utilized in overhead lifting systems, such as cranes, hoists, and slings, to safely lift, lower, or move heavy loads. Its high breaking strength ensures secure operation in material handling equipment.

Q: What is the working load limit range for the G-80 Alloy Steel Load Chain?

A: The chain's working load limit spans from 1.12 tonnes up to 21.2 tonnes, depending on the chain size. This allows you to select the appropriate chain based on your specific lifting requirements.

Q: When should I choose a black oxide versus a polished surface finish?

A: A black oxide finish enhances corrosion resistance and provides a non-reflective surface, making it suitable for outdoor or harsh environments. Polished finishes offer a clean, aesthetic appearance and are often used for applications where appearance matters.

Q: Where are these chains typically manufactured and supplied?

A: These chains are produced and supplied by specialized manufacturers in India, adhering to international standards such as EN 818-2 for quality and safety.

Q: What benefits does G-80 grade alloy steel provide for lifting chains?

A: G-80 grade alloy steel offers superior strength and durability, ensuring that the chains can withstand heavy loads and repeated use. This grade also assures a high breaking strength and reliable elongation properties for safety in lifting operations.

Q: How is the quality of the G-80 Alloy Steel Load Chain ensured during the manufacturing process?

A: Each chain is manufactured following the EN 818-2 standard and undergoes rigorous heat treatment and testing to verify breaking strength, elongation, and load performance before delivery.
